AC ODP NEMA Motor 1Hp -10 Hp Single Phase Air Compressor Motor

Brand Name : BM

Model Number : NEMA 56

Certification : CE UL

Place of Origin : China

MOQ : 10PCS

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1000pcs per month

Delivery Time : 10-25days

Packaging Details : Carton/Pallet

Name : Air compressor motor

Frame Size : 56-215

Frequency : 60 Hz

Horsepower : 1-10HP

Speed : 1500rpm

Voltage : 115/208-230

Contact Now

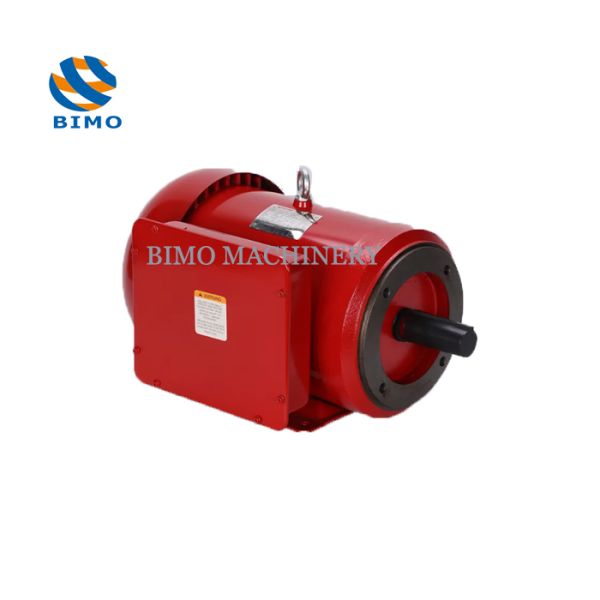

AC ODP 1-10HP Single Phase Air Compressor NEMA Motor

1, Single Phase Air Compressor OEM Special Replacement Motors

2, Designed for air compressor loads.May be suitable for other applications having similar loads

3, Shaft End, 1.0SF, CL B Insulation.40ºC Ambient temperature, Rigid Base. Rolled steel.

HP	RPM 60HZ	NEMA FRAME	VOLTES	ENCL.	S.F	WGT LBS
1	3600	56	115/208-230	ODP	1.15	30
	1800	56	115/208-230	ODP	1.15	38
	1800	143T	115/208-230	ODP	1.15	41
1.5	3600	56	115/208-230	ODP	1.15	37
	1800	56	115/208-230	ODP	1.15	42
	1800	145T	115/208-230	ODP	1.15	45
	3600	145T	115/208-230	ODP	1.15	41
2	3600	56	115/208-230	ODP	1.15	44
	1800	56	115/208-230	ODP	1.15	47
	1800	145T	115/208-230	ODP	1.15	50
	3600	145T	115/208-230	ODP	1.15	48
3	3600	56	115/208-230	ODP	1.15	60
	3600	145T	115/208-230	ODP	1.15	67
	1800	182T	208-230/460	ODP	1.15	88
5	3600	184T	208-230/460	ODP	1.15	95
5	1800	184T	208-230/460	ODP	1.15	96
6	3600	56	230	ODP	1.15	56
7.5	1800	213T	208-230/460	ODP	1.15	149
10	1800	215T	208-230/460	ODP	1.15	161

AC ODP NEMA Motor 1Hp -10 Hp Single Phase Air Compressor Motor

FAQ

Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
